SIPAR ICP Deposition System Combining PECVD and ALD in One Reactor

The inductively coupled plasma (ICP) deposition system SIPAR combines plasma-enhanced chemical vapour deposition (PECVD) and atomic layer deposition (ALD) in one Reactor.

Dekoratives Bild
Dekoratives Bild

Key features & benefits

Sequential deposition

The SENTECH SIPAR ICP Deposition System combines atomic layer deposition (ALD) and inductively coupled plasma-enhanced vacuum deposition (ICPECVD) techniques in a sequential deposition approach in one reaction chamber. Users can leverage the advantages of both processes to achieve precise, conformal, and high-quality multilayer films with excellent control over film thickness, uniformity, selectivity, and deposition rate. This is particularly valuable in advanced organic electronics, microelectronics, nanotechnology, and semiconductor device research.

Flexible system architecture

The system was designed and developed for a wide range of deposition modes and processes using flexible system architecture. Hybrid multilayers composed of uniformly and conformal deposited ALD layers and rapidly grown ICPECVD films offer benefits in organic device technology, nanotechnology, and semiconductor research and industry.

Cost-effective

The efficient multilayer deposition capabilities and small footprint of the SENTECH SIPAR ICP make it highly cost-effective and versatile. It is ideal for use in R&D and academic institutions in organic device technology, nanotechnology, and semiconductor research.

Dekoratives Bild

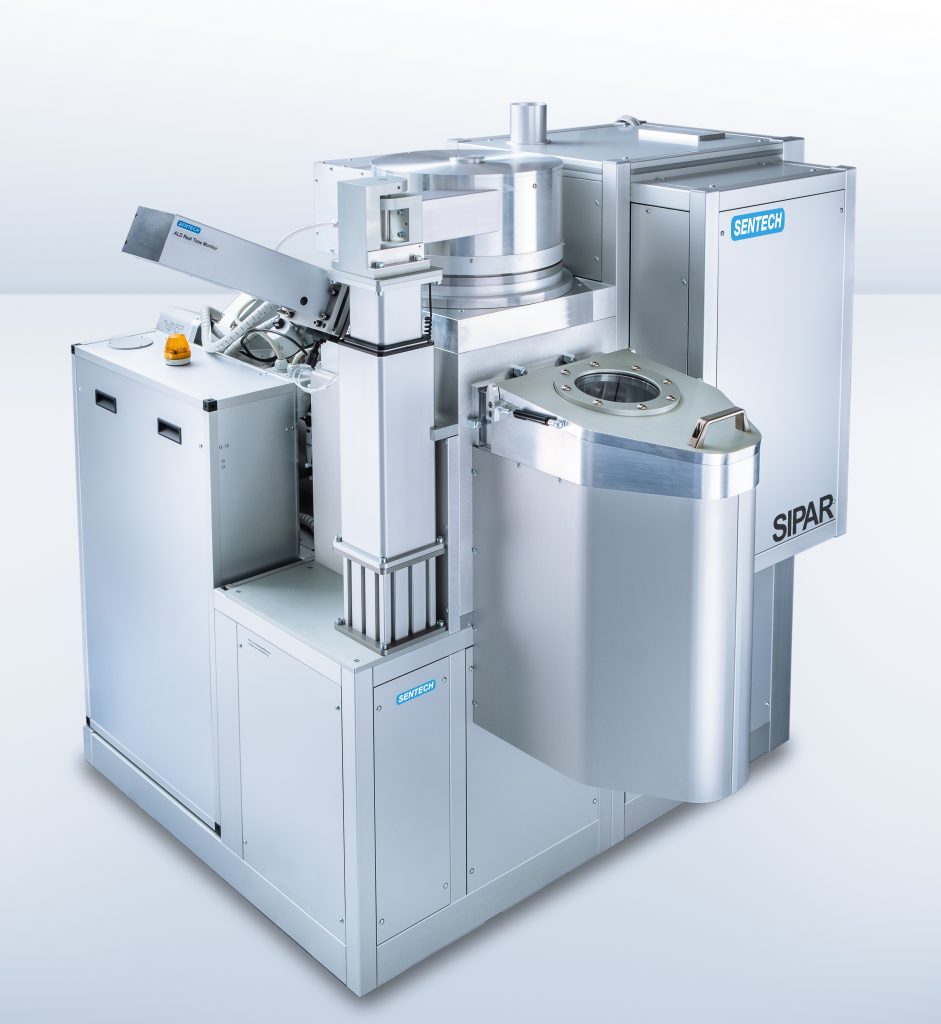

The SENTECH SIPAR ICP Deposition system was developed and designed for a wide range of deposition modes and processes using flexible system architecture. The tool comprises the ICP plasma source PTSA, a dynamic temperature-controlled substrate electrode, and a fully controlled vacuum system. The system combines plasma-enhanced chemical vapour deposition (PECVD) and atomic layer deposition (ALD) in one Reactor.

Flexibility and modularity

The SENTECH SIPAR ICP Deposition System allows sequential deposition with ALD and inductively coupled plasma-enhanced chemical vapour deposition (ICPECVD) without transferring the substrate between different reaction chambers.

Hybrid multilayers composed of uniformly and conformal deposited ALD layers and rapidly grown ICPECVD films offer benefits in organic device technology, nanotechnology and semiconductor research. The SENTECH SIPAR ICP Deposition system enables efficient multilayer deposition for production, research and development and use in universities. Lower price, higher throughput and smaller footprint make the SENTECH SIPAR ICP Deposition system advantageous over a cluster solution.

The SENTECH SIPAR system is controlled by advanced hardware and SIA operating software, with a client-server architecture. A well-proven, reliable programmable logic controller (PLC) is used for the real-time control of all components.

Configurations

SIPAR

SENTECH SIPAR
  • PECVD and ALD combined in one reaction reactor
  • With vacuum load lock
  • For up to 200 mm wafers
  • PTSA ICP plasma source for ICPECVD and PEALD
  • Direct backing pump operation for ALD
  • Turbo molecular pump operation for PECVD
  • Switchablebypass system for optimal process parameters
  • Substrate bias power (optional)

While many SENTECH systems are single-chamber tools, each dedicated to a specific process type (e.g., ICP-RIE for etch, ICPECVD for deposition), cluster-style configurations can bring multiple modules together under shared vacuum handling, letting you do different processes in sequence without breaking vacuum.

In general, you will need electrical power, compressed air, purging nitrogen, cooling water and a process gas supply and exhaust. You will receive an installation manual with your system, which will outline all of the specific requirements of your purchased system. Our technical service team are available to offer support and answer questions.

SENTECH has an international network of distributors and technical service experts. We deliver globally, including Europe, Asia, Africa, North and South America. For more details on in-country representation, click here

SENTECH has a large team of application experts for both plasma process technology and thin film metrology. At our campus are two laboratories which are used to process and characterise customer samples, for system demonstrations and customer training. SENTECH offers application support for the lifecycle of your system. Learn more about our application support or contact the team.

Yes, SENTECH has two application labs in-house. You can contact our application team, who will share with you all the details and provide a sample analysis form for you to complete. Click here for further information and contact details.

Yes, SENTECH has a large network of technical service experts who offer in-country support for both plasma process technology and thin film metrology systems. Remote or on-site support is possible depending on your requirements. Click here to find out more or to contact the team.

SENTECH provides process modules that combine multiple processes, such as SIPAR for PECVD and PEALD, in a single reactor. The SI 500 ICP-RIE accommodates chlorine and fluorine-based etch chemistry in one process chamber. These configurations come with dedicated hardware, cleaning and conditioning recipes, as well as training. These solutions prioritise a smaller footprint and cost efficiency while maintaining practical process repeatability performance.
