SENDURO accuva10 Fully-Automated Thin Film Quality Control

The SENDURO accuva10 is designed for fully automated, precise and repeatable measurement of film thickness, refractive index, and extinction coefficient of materials relevant to MEMS and sensor fabrication.

Dekoratives Bild
Dekoratives Bild

Key features & benefits

Thin film quality control in sensors, MEMS, and rf/power device production

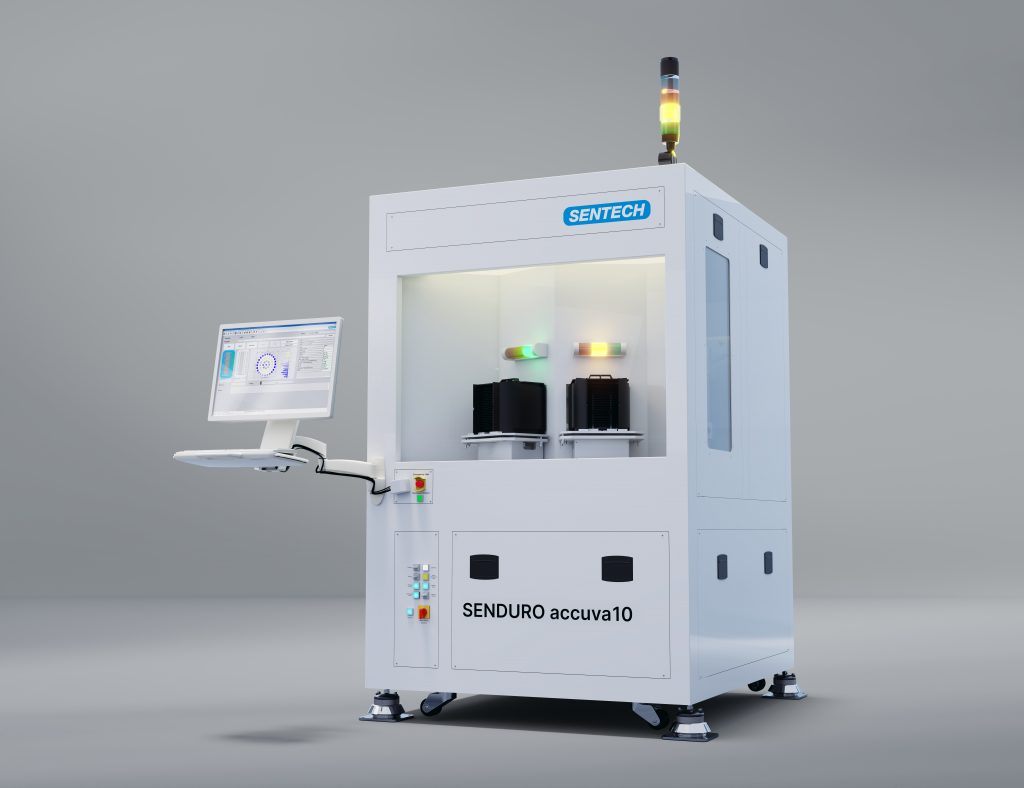

The SENTECH SENDURO accuva10 is a fully automated thin film quality control tool housed in a compact > 2 m² footprint, making it ideal for research or production cleanroom environments. It is a measurement tool for quality control in sensors, RF/power devices, SAW filters, and MEMS production. The tool provides reliable and precise measurement of thin film stacks, using spectroscopic reflectometry and ellipsometry. Wafers are loaded from standard cassettes, and recipes carry out the quality control measurements. The tool is designed to measure film thicknesses, control deposition processes by measuring refractive indices of thin films, and prepare surface trimming for filters.

Backside protection by edge grip technology

In processes where backside protection is mandatory, double-sided patterned wafers can be measured by the SENTECH SENDURO accuva10 without touching the back side. Edge-grip wafer handling is available for 100 mm, 150 mm, and 200 mm wafers. Cassette-to-cassette automatic wafer handling uses a robot, a pre-aligner, and 25-slot cassettes. Single-point and multiple-point measurements are supported by up to 200 mm x-y mapping.

Comprehensive thin film analysis software SpectraRay/4

The fully automated thin film quality control tool, SENDURO accuva10, is operated by the SENTECH SpectraRay/4 software. It provides a high level of flexibility in measuring the broad range of films and layer stacks, as it is common in sensor and MEMS production. The SECS/GEM software interface option supports the communication between the manufacturing execution system (MES) and QC equipment (SENDURO accuva10).

Dekoratives Bild

The SENTECH SENDURO accuva10 for fully automated thin film quality control, offers the configuration flexibility to meet the requirements of production control and QC. The tool can be configured with µ-spot measurements in reflectometry and ellipsometry, and pattern recognition, which provides an accurate measurement location. All measurements can be combined with edge-grip technology.

Flexibility and modularity

The SENTECH SENDURO accuva10 is designed for precise and repeatable measurement of film thickness, refractive index, and extinction coefficient of materials relevant to RF/power devices, MEMS, and sensor fabrication with cassette loading:

  • Silicon oxide, silicon nitride, silicon oxynitride
  • Amorphous silicon, polysilicon
  • Photoresist, polyimide
  • Thin metal films of Al, Pt, Cr and conductive films of TiN, TaN, TCO and ITO
  • Single films and layer stacks of these materials on silicon wafers, silicon-on-insulator substrates, silicon membranes, GaN on silicon, SiC, and more.

Configurations

Spectroscopic ellipsometer

  • Spot for mapping uniformity of test wafers
  • Micro spots and pattern recognition for small fields of analysis
  • Extremely repeatable measurements with a high-precision spectroscopic ellipsometer, applying the most accurate Step Scan Analyser measurement mode, with no moving optical parts during data acquisition

Reflectometer

  • Smallest spot size for the smallest fields of analysis
  • Fast measurement time for efficient mapping

Pattern recognition

  • Fully automated pattern recognition for measuring in fields of analysis
  • Two-step pattern recognition of alignment marks and fields of analysis
  • Easy teaching of new patterns

Edge Grip

  • Minimum edge exclusion
  • Flexibility for multiple wafer sizes with quick change

Multiple cassette stations

  • 2 cassette/carrier stations with flexible carrier size
  • Automatic cassette/carrier detection: presents and size

SECS/GEM

  • Basic SECS/GEM integration with communication to MES
  • Advanced SECS/GEM integration, including process program management and remote control by MES
